LMH0387

3Gbps HD/SD SDI Configurable I/O Adaptive Cable Equalizer / Cable Driver

LMH0387 Features

* 1 ST 424, ST 292, ST 344, and ST 259 Compliant (1)

* Supports DVB-ASI at 270 Mbps

* Data Rates: 125 Mbps to 2.97 Gbps when Receiving (DC to 2.97 Gbps when Driving Cable)

* Equalizes up to 120 Meters of Belden 1694A at 2.97 Gbps, up to 200 Meters of Belden 1694A at 1.

LMH0387 General Description

The LMH0387 3 Gbps HD/SD SDI Configurable I/O Adaptive Cable Equalizer / Cable Driver provides a single chip interface to a BNC. The device can be configured either in the input mode as an equalizer to receive data over coaxial cable or in the output mode as a cable driver to transmit data over coax.

LMH0387 Datasheet (3.32 MB)

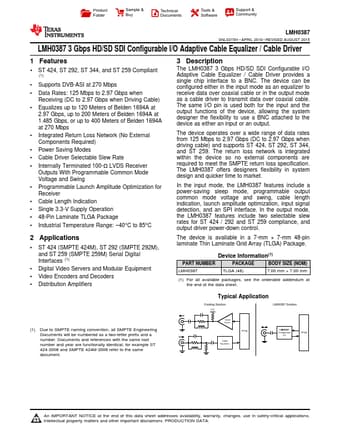

Preview of LMH0387 PDF

Datasheet Details

Part number:

LMH0387

Manufacturer:

Texas Instruments ↗

File Size:

3.32 MB

Description:

3gbps hd/sd sdi configurable i/o adaptive cable equalizer / cable driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMH0387 SNLS315H

* APRIL 2010

* REVISED AUGU.
