LMV358-N-Q1 Low-Voltage Rail-to-Rail Output Operational Amplifier

The LMV358-N and LMV324-N are low-voltage (2.7 V to 5.5 V) versions of the dual and quad commodity op amps LM358 and LM324 (5 V to 30 V). The LMV321N is the single channel version. The LMV321-N, LMV358-N, and LMV324-N are the most costeffective solutions for applications where low-voltage operation.

LMV358-N-Q1 Features

* For V+ = 5 V and V

* = 0 V, unless otherwise specified

* LMV321-N, LMV358-N, and LMV324-N are available in automotive AEC-Q100 grade 1 and grade 3 versions

* Ensured 2.7-V and 5-V performance

* No crossover distortion

* Industrial temperature range

LMV321-N-etcTI.pdf

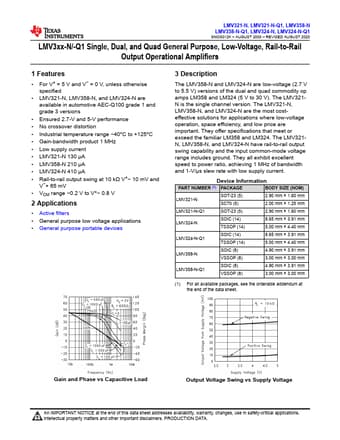

LMV358-N-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: LMV358-N-Q1, LMV321-N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LMV358-N-Q1, LMV321-N

Manufacturer:

Texas Instruments ↗

File Size:

3.58 MB

Description:

Low-voltage rail-to-rail output operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: LMV358-N-Q1, LMV321-N.
Please refer to the document for exact specifications by model.
