LMV358-Q1, LMV321-Q1 Datasheet - Texas Instruments

LMV358-Q1 - Dual Low-Voltage Rail-to-Rail Output Operational Amplifier

ordering information LMV324 .

.

.

D OR PW PACKAGE (TOP VIEW) 1OUT 1IN * 1IN+ VCC+ 2IN+ 2IN * 2OUT 1 2 3 4 5 6 7 14 4OUT 13 4IN * 12 4IN+ 11 GND 10 3IN+ 9 3IN * 8 3OUT LMV358 .

.

.

D OR PW PACKAGE (TOP VIEW) 1OUT 1IN * 1IN+ GND 1 2 3 4 8 VCC+ 7 2OUT 6 2IN

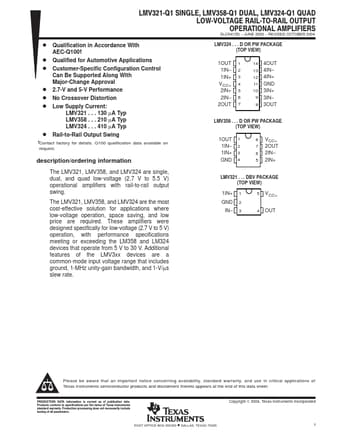

LMV321ĆQ1 SINGLE, LMV358ĆQ1 DUAL, LMV324ĆQ1 QUAD LOWĆVOLTAGE RAILĆTOĆRAIL OUTPUT OPERATIONAL AMPLIFIERS SLOS415D JUNE 2003 REVISED OCTOBER 2004 D Qualification in Accordance With AEC-Q100† D Qualified for Automotive Applications D Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval D 2.7-V and 5-V Performance D No Crossover Distortion D Low Supply Current: LMV321 .

.

.

130 µA Typ LMV358 .

.

.

210 µA Typ LMV324 .

.

.

410 µA Typ D Rail-to-

LMV321-Q1-etcTI.pdf

This datasheet PDF includes multiple part numbers: LMV358-Q1, LMV321-Q1. Please refer to the document for exact specifications by model.
LMV358-Q1 Datasheet Preview Page 2 LMV358-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

LMV358-Q1, LMV321-Q1

Manufacturer:

Texas Instruments ↗

File Size:

769.42 KB

Description:

Dual low-voltage rail-to-rail output operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: LMV358-Q1, LMV321-Q1.
Please refer to the document for exact specifications by model.
