LMZ10503EXT - 3-A Power Module

Texas Instruments

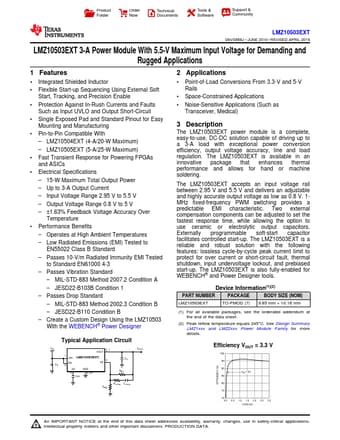

LMZ10503EXT Datasheet Preview — Preview of LMZ10503EXT PDF

Datasheet Details

Part number	LMZ10503EXT
Manufacturer	Texas Instruments ↗
File Size	4.35 MB
Description	3-A Power Module
Datasheet	LMZ10503EXT-etcTI.pdf

LMZ10503EXT Product details

Description

The LMZ10503EXT power module is a complete, easy-to-use, DC-DC solution capable of driving up to a 3-A load with exceptional power conversion efficiency, output voltage accuracy, line and load regulation.

Features

1 Integrated Shielded Inductor.
Flexible Start-up Sequencing Using External Soft Start, Tracking, and Precision Enable.
Protection Against In-Rush Currents and Faults Such as Input UVLO and Output Short-Circuit.
Single Exposed Pad and Standard Pinout for Easy Mounting and Manufacturing.
Pin-to-Pin Compatible With.
LMZ10504EXT (4-A/20-W Maximum).
LMZ10505EXT (5-A/25-W Maximum).
Fast Transient Response for Powering FPGAs and A.
