LMZ12002 Power Module

LMZ12002 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMZ12002 SNVS650H * JANUARY 2010 * REVISED A.
The LMZ12002 SIMPLE SWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 2-A load with exceptional power convers.

LMZ12002 Features

* 1 Integrated Shielded Inductor
* Simple PCB Layout
* Flexible Start-up Sequencing Using External Soft- Start Capacitor and Precision Enable
* Protection Against Inrush Currents and Faults Such as Input UVLO and Output Short Circuit
* Junction Temperature Rang

LMZ12002 Applications

* Point-of-load Conversions from 5-V and 12-V Input Rail
* Time-Critical Projects
* Space-Constrained High Thermal Requirement Applications

📥 Download Datasheet

Preview of LMZ12002 PDF

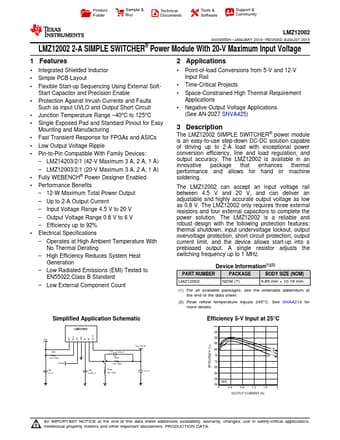

datasheet Preview Page 2 datasheet Preview Page 3
