LMZ12003EXT Datasheet - Texas Instruments

Power Module

LMZ12003EXT Features

* 1 Junction Temperature Range

* 55°C to 125°C

* Integrated Shielded Inductor

* Simple PCB Layout

* Flexible Start-up Sequencing Using External Soft- Start Capacitor and Precision Enable

* Protection Against Inrush Currents and Faults such as Input UVLO

LMZ12003EXT General Description

The LMZ12003EXT SIMPLE SWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12003EXT is available in an innovative package that enhances thermal performa.

LMZ12003EXT Datasheet (1.79 MB)

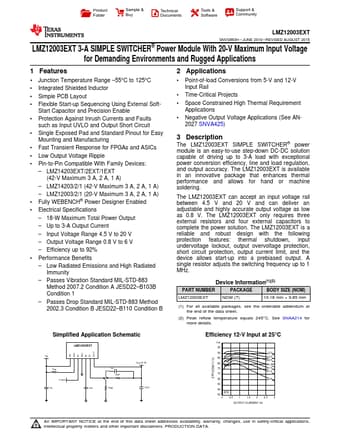

Preview of LMZ12003EXT PDF
