LMZ12003 Power-Module

LMZ12003 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMZ12003 SNVS636O * DECEMBER 2009 * REVISED .
The LMZ12003 SIMPLE SWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load with exceptional power convers.

LMZ12003 Features

* 1 Integrated Shielded Inductor
* Simple PCB Layout
* Flexible Start-up Sequencing Using External Soft- start Capacitor and Precision Enable
* Protection Against Inrush Currents and Faults such as Input UVLO and Output Short Circuit
* Junction Temperature Rang

LMZ12003 Applications

* Point-of-load Conversions from 5-V and 12-V Input Rail
* Time-Critical Projects
* Space-Constrained High Thermal Requirement Applications

📥 Download Datasheet

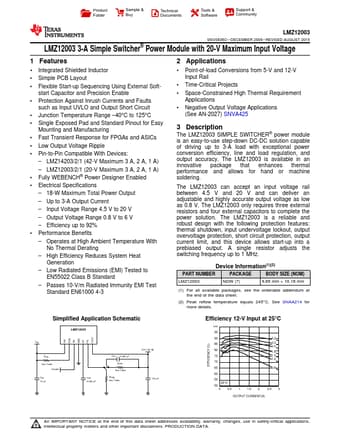

Preview of LMZ12003 PDF
