LMZ10505EXT

5-A Power Module

LMZ10505EXT Features

* 1 Integrated Shielded Inductor

* Flexible Start-up Sequencing Using External Soft Start, Tracking, and Precision Enable

* Protection Against In-Rush Currents and Faults Such as Input UVLO and Output Short-Circuit

* Single Exposed Pad and Standard Pinout for Easy Moun

LMZ10505EXT General Description

The LMZ10505EXT power module is a complete, easy-to-use, DC-DC solution capable of driving up to a 5-A load with exceptional power conversion efficiency, output voltage accuracy, line and load regulation. The LMZ10505EXT is available in an innovative package that enhances thermal performance and all.

LMZ10505EXT Datasheet (4.33 MB)

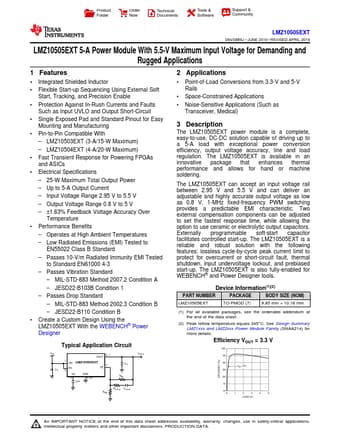

Preview of LMZ10505EXT PDF

Datasheet Details

Part number:

LMZ10505EXT

Manufacturer:

Texas Instruments ↗

File Size:

4.33 MB

Description:

5-a power module.
Product Folder Order Now Technical Documents Tools & Software Support & Community LMZ10505EXT SNVS669J

* JUNE 2010

* REVISED APRI.
