LP3952 - 6-Channel Color LED Driver

Texas Instruments

📥 Download Datasheet

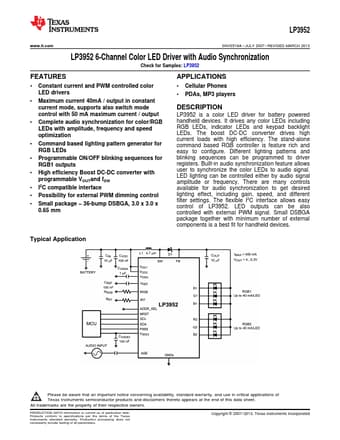

LP3952 Datasheet Preview — Preview of LP3952 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LP3952
Manufacturer	Texas Instruments ↗
File Size	1.64 MB
Description	6-Channel Color LED Driver
Datasheet	LP3952-etcTI.pdf

LP3952 Product details

Description

LP3952 is a color LED driver for battery powered handheld devices.

Features

1.
2 Constant current and PWM controlled color LED drivers.
Maximum current 40mA / output in constant current mode, supports also switch mode control with 50 mA maximum current / output.
Complete audio synchronization for color/RGB LEDs with amplitude, frequency and speed optimization.
Command based lighting pattern generator for RGB LEDs.
Programmable ON/OFF blinking sequences for RGB1 outputs.
High efficiency Boost DC-DC converter with progr.
