LP395

Ultra Reliable Power Transistor

National Semiconductor

LP395 Features

* n n n n n n n Internal thermal limiting Internal current and power limiting Guaranteed 100 mA output current 0.5 µA typical base current Directly interfaces with TTL or CMOS +36 Volts on base causes no damage 2 µs switching time Connection Diagram TO-92 Package Typical Applications Fully Protected

LP395 General Description

The LP395 is a fast monolithic transistor with complete overload protection. This very high gain transistor has included on the chip, current limiting, power limiting, and thermal overload protection, making it difficult to destroy from almost any type of overload. Available in an epoxy TO-92 transi.

LP395 Datasheet (130.93 KB)

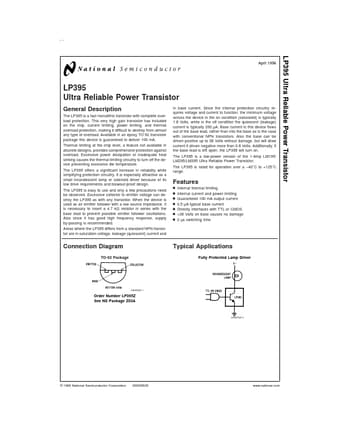

LP395 Datasheet Preview — Preview of LP395 PDF

Datasheet Details

Part number:

LP395

Manufacturer:

National Semiconductor

File Size:

130.93 KB

Description:

Ultra reliable power transistor.
