LP3954

Advanced Lighting Management

LP3954 Features

* 1

* 2 Audio Synchronization for Color/RGB LEDs

* Command Based PWM Controlled RGB LED Drivers

* High Current Driver for Flash LED With Built-in Timing

* 4+2 or 6 Low Voltage Constant Current White LED Drivers With Orogrammable 8-Bit Adjustment (0…25mA/LED)

* Hi

LP3954 General Description

LP3954 is an advanced lighting management unit for handheld devices. It drives any phone lights including display backlights, RGB, keypad and camera flash LEDs. The boost DC-DC converter drives high current loads with high efficiency. White LED backlight drivers are high efficiency low voltage struc.

LP3954 Datasheet (1.45 MB)

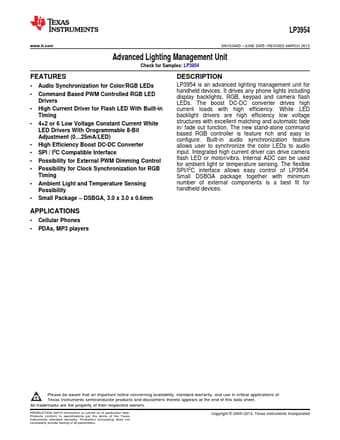

Preview of LP3954 PDF

Datasheet Details

Part number:

LP3954

Manufacturer:

Texas Instruments ↗

File Size:

1.45 MB

Description:

Advanced lighting management.
