LP8725

Power-Management

LP8725 Features

* 1

* 2 Two High-Efficiency Step-Down DC-DC Converters, IOUT = 600 mA, With a 4-MHz Switching Frequency Using Small 1-µH Inductors, With Options up to 800 mA

* Three Digital LDOs for up to 300-mA Load Current Each

* Two Low-Noise Analog 300-mA LDOs

* Two Low-Input Low-Ou

LP8725 General Description

This device is a multi-function programmable Power Management Unit (PMU), optimized for sub block power solutions. This device integrates two highly efficient 600-mA step-down DC-DC converters configurable up to 800-mA load with Dynamic Voltage Scaling (DVS) via the serial interface, two low-noise a.

LP8725 Datasheet (1.85 MB)

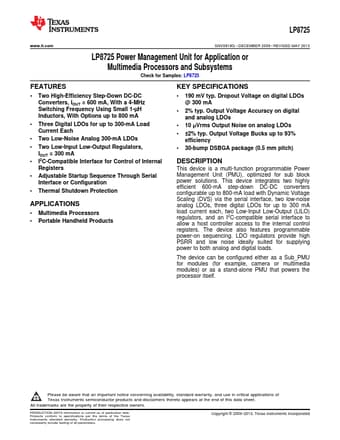

Preview of LP8725 PDF

Datasheet Details

Part number:

LP8725

Manufacturer:

Texas Instruments ↗

File Size:

1.85 MB

Description:

Power-management.
LP8725 www.ti.com SNVS618G

* DECEMBER 2009

* REVISED MAY 2013 LP8725 Power Management Unit for Application or Multimedia Processors.
