LP8728D-Q1 - Quad-Output Step-Down DC-DC Converter

LP8728D-Q1 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LP8728D-Q1 SNVSA72 * FEBRUARY 2015 LP8728D-Q1 Quad-O.
The LP8728D-Q1 is a quad-output Power Management Unit (PMU), optimized for low-power FPGAs, microprocessors, and DSPs for automotive applications.

LP8728D-Q1 Features

* 1 LP8728D-Q1 is an Automotive Grade Product that is AECQ-100 Grade 1 Qualified
* Four High Efficiency Step-Down DC-DC Converters:
* 93% Peak Efficiency (VIN = 5 V, VOUT = 3.3 V)
* Max Output Current 1 A
* Forced PWM Operation
* Soft-Start Control

LP8728D-Q1 Applications

* FPGA, DSP Core Power
* Processor Power for Mobile Devices
* Peripheral I/O Power
* Automotive Safety Cameras
* Automotive Infotainment Micro Controller Simplified Schematic VIN 1 µF 1 µF VDDIO AVDD BYP PG_B1 PG_B2 PG_B3 PG_B4 EN_B1 EN_B2 EN_B3 EN_B4 DEF

📥 Download Datasheet

Preview of LP8728D-Q1 PDF

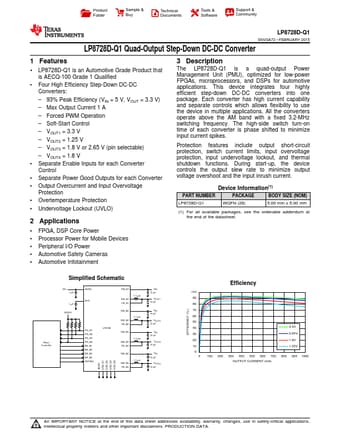

datasheet Preview Page 2 datasheet Preview Page 3
