LP8728-Q1 Datasheet - Texas Instruments

LP8728-Q1 Quad-Output Step-Down DC/DC Converter

The LP8728-Q1 is a quad-output Power Management Unit (PMU), optimized for low-power FPGAs, microprocessors, and DSPs for automotive applications. This device integrates four highly efficient step-down DC/DC converters into one package. Each converter has high current capability and separate controls.

LP8728-Q1 Features

* 1 LP8728-Q1 is an Automotive Grade Product that is AECQ-100 Grade 1 Qualified

* Four High Efficiency Step-Down DC/DC Converters:

* 93% Peak Efficiency (VIN = 5 V, VOUT 3.3 V)

* Max Output Current 1 A

* Forced PWM Operation

* Soft-Start Control

LP8728-Q1 Datasheet (1.07 MB)

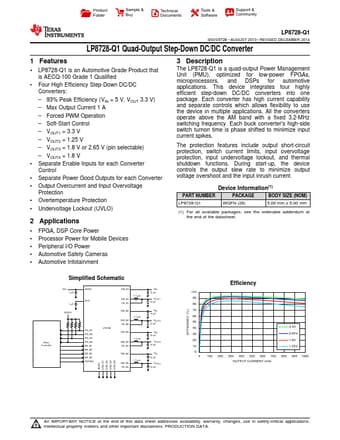

Preview of LP8728-Q1 PDF

Datasheet Details

Part number:

LP8728-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.07 MB

Description:

Quad-output step-down dc/dc converter.
