MSP430F67471A, MSP430F67791A, Polyphase Metering SoCs

Product Folder Order Now Technical Documents Tools & Software Support & Community MSP430F67791A, MSP430F67781A, MSP430F67771A, MSP430F67761A, MSP.
MSP430F67xx1A polyphase metering SoCs are powerful highly integrated solutions that offer high accuracy and low system cost with few external componen.

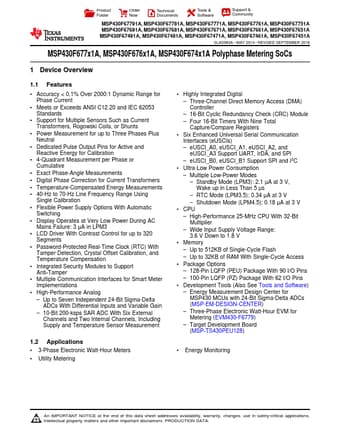

datasheet Preview Page 1 from Datasheet4u.com

MSP430F67791A-etcTI.pdf

MSP430F67471A Datasheet Preview — This datasheet PDF includes multiple part numbers: MSP430F67471A, MSP430F67791A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MSP430F67471A, MSP430F67791A

Manufacturer:

Texas Instruments ↗

File Size:

2.96 MB

Description:

Polyphase Metering SoCs

Note:

This datasheet PDF includes multiple part numbers: MSP430F67471A, MSP430F67791A.
Please refer to the document for exact specifications by model.

Features

* 1
* Accuracy < 0.1% Over 2000:1 Dynamic Range for Phase Current
* Meets or Exceeds ANSI C12.20 and IEC 62053 Standards
* Support for Multiple Sensors Such as Current Transformers, Rogowski Coils, or Shunts
* Power Measurement for up to Three Phases Plus Neutral

Applications

* 3-Phase Electronic Watt-Hour Meters
* Utility Metering
* Highly Integrated Digital
* Three-Channel Direct Memory Access (DMA) Controller
* 16-Bit Cyclic Redundancy Check (CRC) Module
* Four 16-Bit Timers With Nine Total Capture/Compare Registers
