MSP430F6747A, MSP430F6779A - Polyphase Metering SoCs

Texas Instruments

The MSP430F6747A by Texas Instruments is a Polyphase Metering SoCs. Below is the official datasheet preview.

📥 Download Datasheet

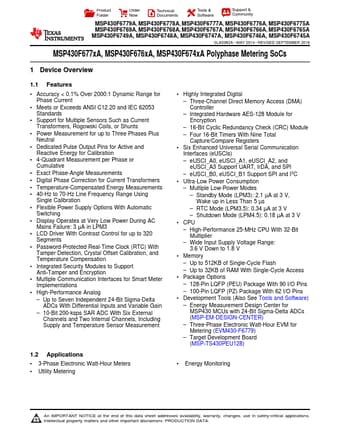

MSP430F6747A Polyphase Metering SoCs by Texas Instruments - Datasheet Preview — Official preview page of the **MSP430F6747A** Polyphase Metering SoCs datasheet (Texas Instruments).

Datasheet Details

Part number	MSP430F6747A, MSP430F6779A
Manufacturer	Texas Instruments
File Size	2.92 MB
Description	Polyphase Metering SoCs
Datasheet	MSP430F6779A-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: MSP430F6747A, MSP430F6779A. Please refer to the document for exact specifications by model.
Additional preview pages of the MSP430F6747A datasheet.

MSP430F6747A Product details

Description

MSP430F67xxA polyphase metering SoCs are powerful highly integrated solutions that offer high accuracy and low system cost with few external components.

Features

1.
Accuracy < 0.1% Over 2000:1 Dynamic Range for Phase Current.
Meets or Exceeds ANSI C12.20 and IEC 62053 Standards.
Support for Multiple Sensors Such as Current Transformers, Rogowski Coils, or Shunts.
Power Measurement for up to Three Phases Plus Neutral.
Dedicated Pulse Output Pins for Active and Reactive Energy for Calibration.
4-Quadrant Measurement per Phase or Cumulative.
Exact Phase-Angle Measurements.
Digital Phase.
