MSP430FE423 - Mixed-Signal Microcontroller

Texas Instruments

The MSP430FE423 by Texas Instruments is a Mixed-Signal Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

MSP430FE423 Mixed-Signal Microcontroller by Texas Instruments - Datasheet Preview — Official preview page of the **MSP430FE423** Mixed-Signal Microcontroller datasheet (Texas Instruments).

Datasheet Details

Part number	MSP430FE423
Manufacturer	Texas Instruments
File Size	1.38 MB
Description	Mixed-Signal Microcontroller
Datasheet	MSP430FE423-etcTI.pdf

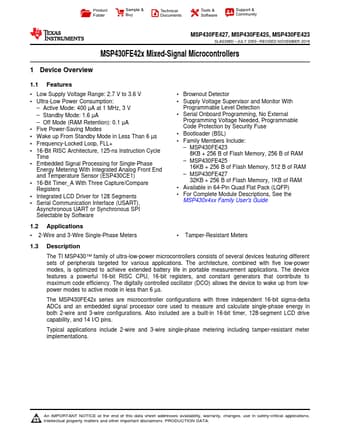

Additional preview pages of the MSP430FE423 datasheet.

MSP430FE423 Product details

Description

, See the MSP430x4xx Family User's Guide 1.2 Applications 2-Wire and 3-Wire Single-Phase Meters Tamper-Resistant Meters 1.3 Description The TI MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications.The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications.The device

Features

1.
Low Supply Voltage Range: 2.7 V to 3.6 V.
Ultra-Low Power Consumption:.
Active Mode: 400 µA at 1 MHz, 3 V.
Standby Mode: 1.6 µA.
Off Mode (RAM Retention): 0.1 µA.
Five Power-Saving Modes.
Wake up From Standby Mode in Less Than 6 µs.
Frequency-Locked Loop, FLL+.
16-Bit RISC Architecture, 125-ns Instruction Cycle Time.
Embedded Signal Processing for Single-Phase Energy Metering With Integrated Analog Front.
