MSP430FE4252 MIXED SIGNAL MICROCONTROLLER

, See the MSP430x4xx Family User’s Guide, Literature Number SLAU056 description The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-pow.

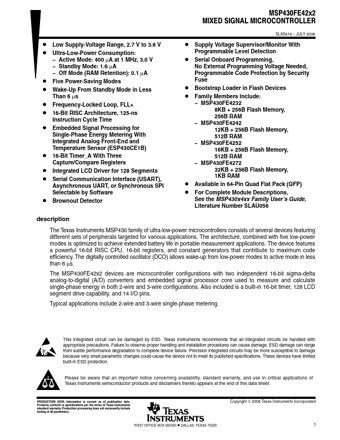

MSP430FE42x2 MIXED SIGNAL MICROCONTROLLER D Low Supply-Voltage Range, 2.7 V to 3.6 V D Ultra-Low-Power Consumption: Active Mode: 400 µA at 1 MHz, 3.0 V Standby Mode: 1.6 µA Off Mode (RAM Retention): 0.1 µA D Five Power-Saving Modes D Wake-Up From Standby Mode in Less Than 6 µs D Frequency-Locked Loop, FLL+ D 16-Bit RISC Architecture, 125-ns Instruction Cycle Time D Embedded Signal Processing for Single-Phase Energy Metering With Integrated Analog Front-End and Temp.

MSP430FE4252 Features

* a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs. The MSP430FE42x2 devices are microcontroller configurations with two indep
