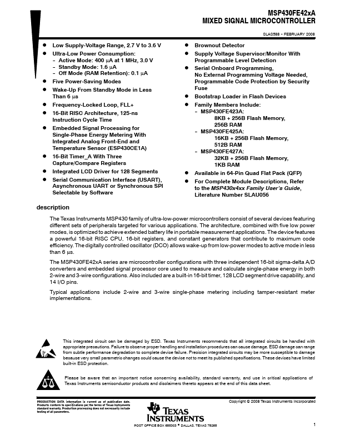

MSP430FE425A Datasheet - Texas Instruments

MSP430FE425A MIXED SIGNAL MICROCONTROLLER

, Refer to the MSP430x4xx Family User’s Guide, Literature Number SLAU056 description The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low.

MSP430FE42xA MIXED SIGNAL MICROCONTROLLER D Low Supply-Voltage Range, 2.7 V to 3.6 V D Ultra-Low Power Consumption: Active Mode: 400 μA at 1 MHz, 3.0 V Standby Mode: 1.6 μA Off Mode (RAM Retention): 0.1 μA D Five Power-Saving Modes D Wake-Up From Standby Mode in Less Than 6 μs D Frequency-Locked Loop, FLL+ D 16-Bit RISC Architecture, 125-ns Instruction Cycle Time D Embedded Signal Processing for Single-Phase Energy Metering With Integrated Analog Front-End and Temp.

MSP430FE425A Features

* a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs. The MSP430FE42xA series are microcontroller configurations with three inde

MSP430FE425A Datasheet (0.98 MB)
