OPA2188-Q1

Automotive-Grade Operational Amplifier

OPA2188-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results:

* OPA188-Q1 Device Temperature Grade 1:

* 40°C to +125°C

* OPA2188-Q1 Device Temperature Grade 2:

* 40°C to +105°C

* Device HBM ESD Classification Level 1C

OPA2188-Q1 General Description

The OPAx188-Q1 operational amplifier family uses TI's proprietary zero drift techniques to provide low offset voltage (25-μV maximum) and near zero-drift over time and temperature. This miniature, highprecision, low-quiescent current amplifier family offers high input impedance and rail-to-rail outp.

OPA2188-Q1 Datasheet (1.26 MB)

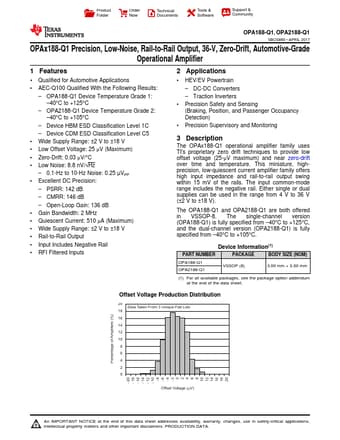

Preview of OPA2188-Q1 PDF

Datasheet Details

Part number:

OPA2188-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.26 MB

Description:

Automotive-grade operational amplifier.
Product Folder Order Now Technical Documents Tools & Software Support & Community OPA188-Q1, OPA2188-Q1 SBOS860

* APRIL 2017 OPAx188-Q1 P.
