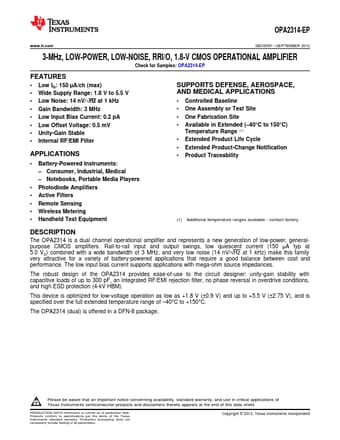

OPA2314-EP Datasheet, Amplifier, Texas Instruments

OPA2314-EP Features

• Amplifier 1
• Low IQ: 150 µA/ch (max)
• Wide Supply Range: 1.8 V to 5.5 V
• Low Noise: 14 nV/√Hz at 1 kHz
• Gain Bandwidth: 3 MHz
• Low Input Bias Current:

PDF File Details

Part number:

OPA2314-EP

Manufacturer:

Texas Instruments ↗

File Size:

1.52MB

Download:

📄 Datasheet

Description:

1.8-v cmos operational amplifier. The OPA2314 is a dual channel operational amplifier and represents a new generation of low-power, generalpurpose CMOS amplifiers. Rai

OPA2314-EP Application

• Applications
• Battery-Powered Instruments:
    – Consumer, Industrial, Medical
    – Notebooks, Portable Media Play
