OPA2316S

1.8-V CMOS Operational Amplifier

OPA2316S Features

* 1 Unity-Gain Bandwidth: 10 MHz

* Low IQ: 400 µA/ch

* Wide Supply Range: 1.8 V to 5.5 V

* Low Noise: 11 nV/√Hz at 1 kHz

* Low Input Bias Current: ±5 pA

* Offset Voltage: ±0.5 mV

* Unity-Gain Stable

* Internal RFI-EMI Filter

* Sh

OPA2316S General Description

The OPAx316 family of single, dual, and quad operational amplifiers represents a new generation of general-purpose, low-power operational amplifiers. Featuring rail-to-rail input and output swings, low quiescent current (400 μA/ch typical) combined with a wide bandwidth of 10 MHz and very-low noise .

OPA2316S Datasheet (3.28 MB)

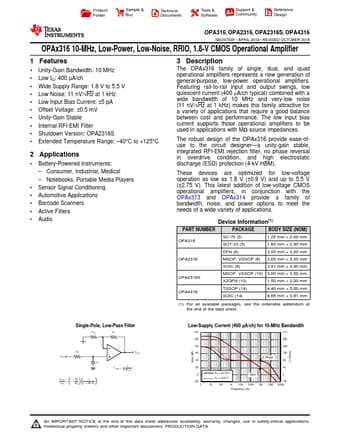

Preview of OPA2316S PDF

Datasheet Details

Part number:

OPA2316S

Manufacturer:

Texas Instruments ↗

File Size:

3.28 MB

Description:

1.8-v cmos operational amplifier.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design OPA316, OPA2316, OPA2316S, OPA4316 SBOS703.
