OPA2314-Q1 Datasheet - Texas Instruments

OPA2314-Q1 1.8-V CMOS Operational Amplifier

The OPAx314-Q1 series is a family of single *, and dual *, and quad-channel operational amplifiers (op amps) that represents a new generation of lowpower, general-purpose CMOS amplifiers. Rail-to-rail input and output swings, low quiescent current (150 μA typically at 5 VS) combined wi.

OPA2314-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results:

* Device Temperature Grade :

* 40°C to +125°C Ambient Operating Temperature Range

* Device HBM Classification Level 2

* Device CDM Classification Level C6

OPA2314-Q1 Datasheet (1.85 MB)

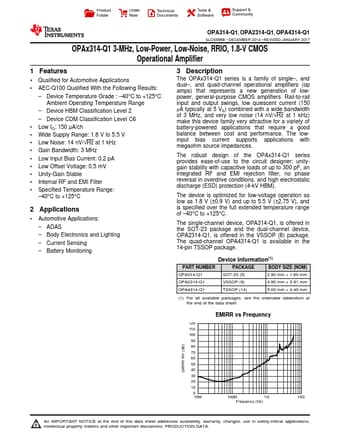

Preview of OPA2314-Q1 PDF

Datasheet Details

Part number:

OPA2314-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.85 MB

Description:

1.8-v cmos operational amplifier.
