OPA4314 Datasheet, Amplifier, Texas Instruments

OPA4314 Features

  • Amplifier
  • 1 Low IQ: 150 µA/ch
  • Wide Supply Range: 1.8 V to 5.5 V
  • Low Noise: 14 nV/√Hz at 1 kHz
  • Gain Bandwidth: 3 MHz
  • Low Input Bias Current: 0.2 pA

PDF File Details

Part number:

OPA4314

Manufacturer:

Texas Instruments ↗

File Size:

2.44MB

Download:

📄 Datasheet

Description:

1.8-v cmos operational amplifier. The OPA314 family of single-, dual-, and quadchannel operational amplifiers represents a new generation of low-power, general-purpose

Datasheet Preview: OPA4314 📥 Download PDF (2.44MB)

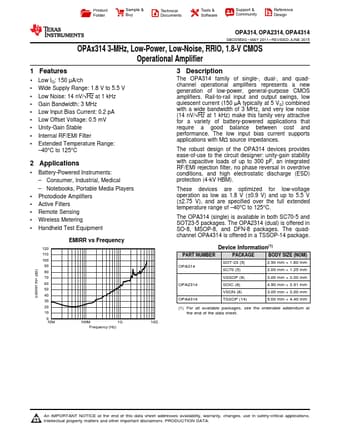

Page 2 of OPA4314 Page 3 of OPA4314

OPA4314 Application

  • Applications
  • Battery-Powered Instruments:
      – Consumer, Industrial, Medical
      – Notebooks, Portable Media Play

TAGS

OPA4314
1.8-V
CMOS
Operational
Amplifier
Texas Instruments
