OPA4322-Q1

CMOS Operational Amplifier

OPA4322-Q1 Datasheet (1.48 MB)

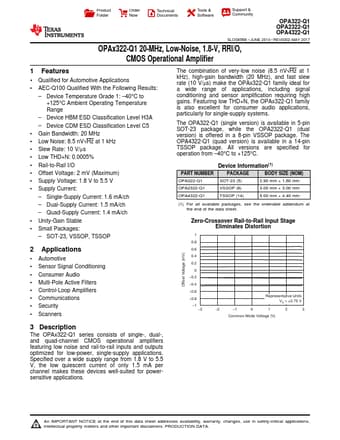

Preview of OPA4322-Q1 PDF

Datasheet Details

Part number:

OPA4322-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.48 MB

Description:

Cmos operational amplifier.
Product Folder Order Now Technical Documents Tools & Software Support & Community OPA322-Q1 OPA2322-Q1 OPA4322-Q1 SLOS856B

* JUNE 2013 <.

OPA4322-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results:

* Device Temperature Grade 1:

* 40°C to +125°C Ambient Operating Temperature Range

* Device HBM ESD Classification Level H3A

* Device CDM ESD Classification Level

OPA4322-Q1 General Description

The OPAx322-Q1 series consists of single-, dual-, and quad-channel CMOS operational amplifiers featuring low noise and rail-to-rail inputs and outputs optimized for low-power, single-supply applications. Specified over a wide supply range from 1.8 V to 5.5 V, the low quiescent current of only 1.5 mA.
