OPA4322S Datasheet, Amplifier, Texas Instruments

OPA4322S Features

  • Amplifier
  • 1 Gain Bandwidth: 20 MHz
  • Low Noise: 8.5 nV√Hz at 1 kHz
  • Slew Rate: 10 V/μs
  • Low THD+N: 0.0005%
  • Rail-to-Rail I/O
  • Offset Voltage:

PDF File Details

Part number:

OPA4322S

Manufacturer:

Texas Instruments ↗

File Size:

2.76MB

Download:

📄 Datasheet

Description:

Cmos operational amplifier. The OPAx322x series consists of single, dual, and quad-channel CMOS operational amplifiers featuring low noise and rail-to-rail input

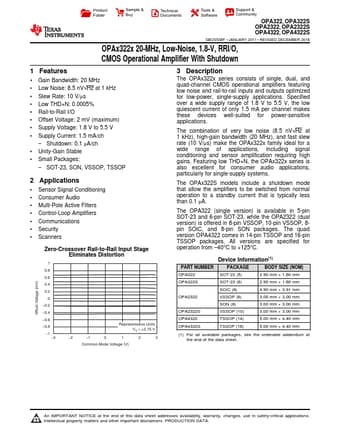

Datasheet Preview: OPA4322S 📥 Download PDF (2.76MB)
Page 2 of OPA4322S Page 3 of OPA4322S

OPA4322S Application

  • Applications
  • Sensor Signal Conditioning
  • Consumer Audio
  • Multi-Pole Active Filters
  • Control-Loop Amplifiers
