OPA4316, OPA316 1.8-V CMOS Operational Amplifier

OPA4316 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design OPA316, OPA2316, OPA2316S, OPA4316 SBOS703.
The OPAx316 family of single, dual, and quad operational amplifiers represents a new generation of general-purpose, low-power operational amplifiers.

OPA4316 Features

* 1 Unity-Gain Bandwidth: 10 MHz
* Low IQ: 400 µA/ch
* Wide Supply Range: 1.8 V to 5.5 V
* Low Noise: 11 nV/√Hz at 1 kHz
* Low Input Bias Current: ±5 pA
* Offset Voltage: ±0.5 mV
* Unity-Gain Stable
* Internal RFI-EMI Filter
* Sh

OPA4316 Applications

* Battery-Powered Instruments:
* Consumer, Industrial, Medical
* Notebooks, Portable Media Players
* Sensor Signal Conditioning
* Automotive Applications
* Barcode Scanners
* Active Filters

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA4316, OPA316. Please refer to the document for exact specifications by model.

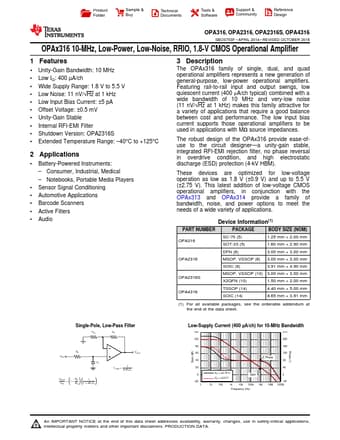

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA4316, OPA316
Manufacturer
Texas Instruments ↗
File Size
3.28 MB
Datasheet
OPA316-etcTI.pdf
Description
1.8-V CMOS Operational Amplifier
Note
This datasheet PDF includes multiple part numbers: OPA4316, OPA316.
Please refer to the document for exact specifications by model.
