OPA842

Voltage-Feedback Operational Amplifier

Texas Instruments

OPA842 Features

* 1

* 2 UNITY-GAIN BANDWIDTH: 400MHz

* GAIN-BANDWIDTH PRODUCT: 200MHz

* LOW INPUT VOLTAGE NOISE: 2.6nV/√Hz

* VERY LOW DISTORTION:

* 93dBc (5MHz)

* HIGH OPEN-LOOP GAIN: 110dB

* FAST 12-BIT SETTLING: 22ns (0.01%)

* LOW DC VOLTAGE OFFSET: 300m

OPA842 General Description

The OPA842 provides a level of speed and dynamic range previously unattainable in a monolithic op amp. Using unity-gain stable, voltage-feedback architecture with two internal gain stages, the OPA842 achieves exceptionally low harmonic distortion over a wide frequency range. The classic differential.

OPA842 Datasheet (1.24 MB)

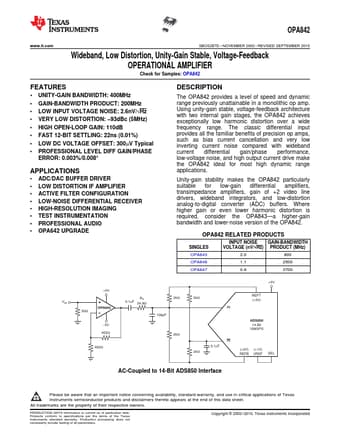

OPA842 Datasheet Preview — Preview of OPA842 PDF

Datasheet Details

Part number:

OPA842

Manufacturer:

Texas Instruments ↗

File Size:

1.24 MB

Description:

Voltage-feedback operational amplifier.
OPA842 www.ti.com SBOS267D

* NOVEMBER 2002

* REVISED SEPTEMBER 2010 Wideband, Low Distortion, Unity-Gain Stable, Voltage-Feedback OP.
