PCA9546A - Low Voltage 4-Channel I2C and SMBus Switch

Datasheet Summary

Description

The PCA9546A is a quad bidirectional translating switch controlled via the I2C bus.

The SCL/SDA upstream pair fans out to four downstream pairs, or channels.

Any individual SCn/SDn channel or combination of channels can be selected, determined by the contents of the programmable control register.

Features

  • 1-of-4 Bidirectional Translating Switches.
  • I2C Bus and SMBus Compatible.
  • Active-Low Reset Input.
  • Three Address Pins, Allowing up to Eight PCA9546A Devices on the I2C Bus.
  • Channel Selection Via I2C Bus, in Any Combination.
  • Power-up With All Switch Channels Deselected.
  • Low RON Switches.
  • Allows Voltage-Level Translation Between 1.8-V, 2.5-V, 3.3-V, and 5-V Buses.
  • No Glitch on Power-up.
  • Supports Hot Insertion.

📥 Download Datasheet

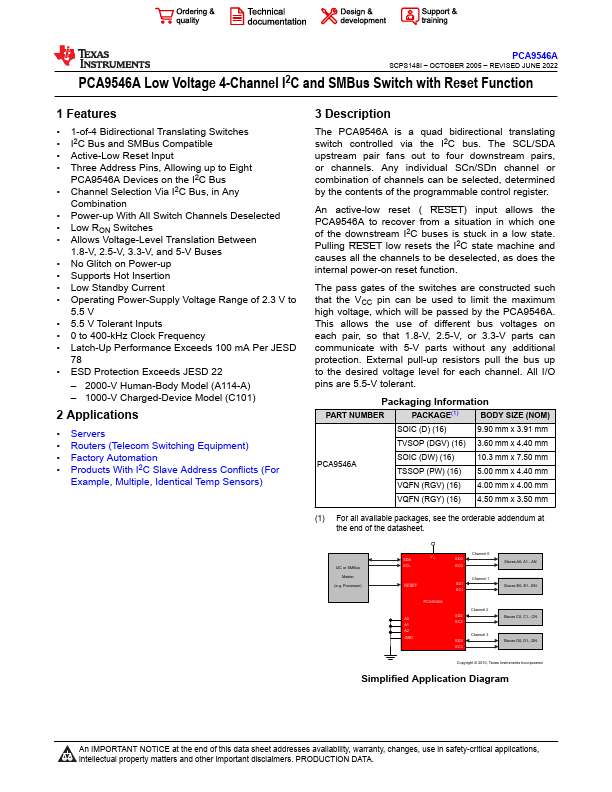

Datasheet preview – PCA9546A

Datasheet Details

Part number PCA9546A
Manufacturer Texas Instruments
File Size 2.50 MB
Description Low Voltage 4-Channel I2C and SMBus Switch
Datasheet download datasheet PCA9546A Datasheet

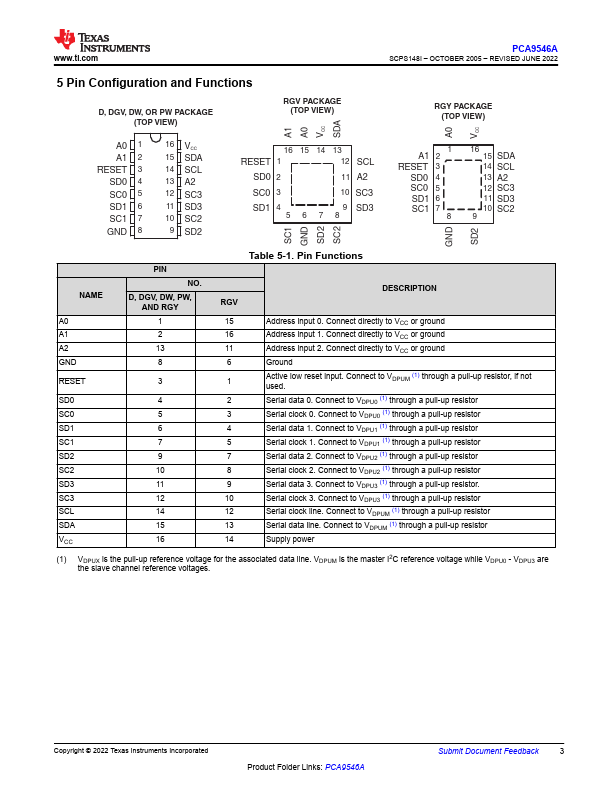

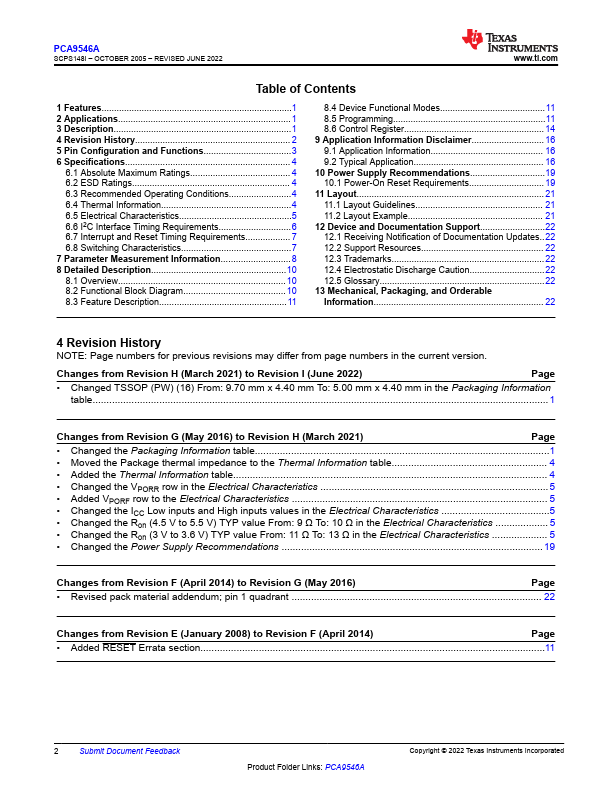

Additional preview pages of the PCA9546A datasheet.

📁 Similar Datasheet

  • PCA9546A - 4-channel I2C switch (NXP)
  • PCA9546 - 4-channel I2C switch with reset (NXP)
  • PCA9540 - 2-channel I2C multiplexer (NXP)
  • PCA9540B - 2-channel I2C-bus multiplexer (NXP)
  • PCA9541 - 2-to-1 I2C-bus master selector (NXP Semiconductors)
  • PCA9541A - 2-to-1 I2C-bus master selector (NXP Semiconductors)
  • PCA9542 - 2-channel I2C multiplexer and interrupt controller (NXP)
  • PCA9542A - 2-channel I2C-bus multiplexer and interrupt logic (NXP Semiconductors)
  • PCA9543 - 2-channel I2C switch (NXP)
  • PCA9543A - 2-channel I2C-bus switch (NXP Semiconductors)
Other Datasheets by Texas Instruments
  • PCA9543A - 2-Channel I2C Bus Switch
  • PCA9544A - Low Voltage 4-Channel I2C and SMBus Multiplexer
  • PCA9545A - Low Voltage 4-channel I2C and SMbus Switch
  • PCA9548A - Low Voltage 8-Channel I2C Switch
  • PCA9515A - Dual Bidirectional I2C Bus and SMBus Repeater
  • PCA9515B - Dual Bidirectional I2C Bus and SMBus Repeater
  • PCA9517 - Level-Translating I2C Bus Repeater
  • PCA9518 - Expandable Five-Channel I2C HUB

Full PDF Text Transcription

Click to expand full text
PCA9546A SCPS148I – OCTOBER 2005 – REVISED JUNE 2022 PCA9546A Low Voltage 4-Channel I2C and SMBus Switch with Reset Function 1 Features • 1-of-4 Bidirectional Translating Switches • I2C Bus and SMBus Compatible • Active-Low Reset Input • Three Address Pins, Allowing up to Eight PCA9546A Devices on the I2C Bus • Channel Selection Via I2C Bus, in Any Combination • Power-up With All Switch Channels Deselected • Low RON Switches • Allows Voltage-Level Translation Between 1.8-V, 2.5-V, 3.3-V, and 5-V Buses • No Glitch on Power-up • Supports Hot Insertion • Low Standby Current • Operating Power-Supply Voltage Range of 2.3 V to 5.5 V • 5.
