SN10502

HIGH-SPEED RAIL-TO-RAIL OUTPUT VIDEO AMPLIFIERS

SN10502 Features

* 1

* 2 High Speed

* 100 MHz Bandwidth (

* 3 dB, G = 2)

* 900 V/s Slew Rate

* Excellent Video Performance

* 50 MHz Bandwidth (0.1 dB, G = 2)

* 0.007% Differential Gain

* 0.007 Differential Phase

* Rail-to-Rail Output Swing

SN10502 General Description

The SN1050x family is a set of rail-to-rail output single, dual, and triple low-voltage, high-output swing, low-distortion high-speed amplifiers ideal for driving data converters, video switching, or low distortion applications. This family of voltage-feedback amplifiers can operate from a single 1.

SN10502 Datasheet (1.77 MB)

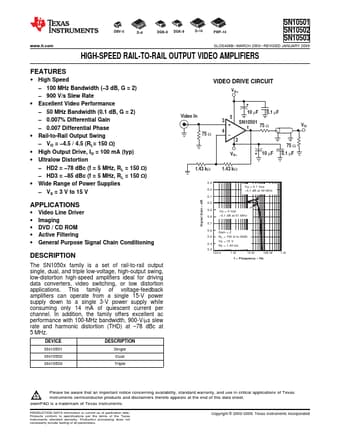

Preview of SN10502 PDF

Datasheet Details

Part number:

SN10502

Manufacturer:

Texas Instruments ↗

File Size:

1.77 MB

Description:

High-speed rail-to-rail output video amplifiers.
DBV-5 D-8 DGN-8 DGK-8 D-14 PWP-14 SN10501 SN10502 SN10503 www.ti.com SLOS408B

* MARCH 2003

* REVISED JANUARY 2009 HIGH-SPEED R.
