SN54ACT14 Datasheet - Texas Instruments

SN54ACT14 HEX SCHMITT-TRIGGER INVERTER

These Schmitt-trigger devices contain six independent inverters. Package Information PART NUMBER PACKAGE BODY SIZE (NOM) SOIC 8.65 mm x 3.9 mm SSOP 6.2 mm x 1.95 mm SNx4ACT14 PDIP 19.3 mm x 6.35 mm SOP 10.3 mm x 5.3 mm TSSOP 5.00 mm x 4.4 mm Logic Diagram (Positive Logic) An IMPORT.

SN54ACT14 Datasheet (1.67 MB)

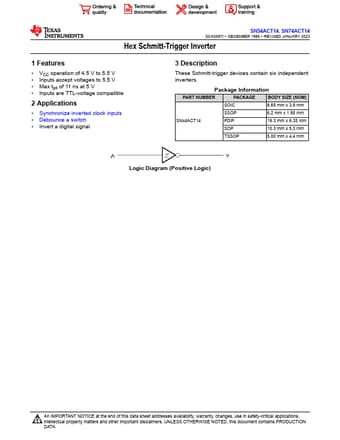

Preview of SN54ACT14 PDF

Datasheet Details

Part number:

SN54ACT14

Manufacturer:

Texas Instruments ↗

File Size:

1.67 MB

Description:

Hex schmitt-trigger inverter.
