SN54ACT16240 Datasheet - Texas Instruments

SN54ACT16240 16-BIT BUFFERS/DRIVERS

The SN54ACT16240 and 74ACT16240 are 16-bit buffers or line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The devices can be used as four 4-bit buffers, two 8-bit buffers, or one.
SN54ACT16240, 74ACT16240 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS SCAS137C JULY 1989 REVISED NOVEMBER 1996 D Members of the Texas Instruments Widebus ™ Family D Inputs Are TTL-Voltage Compatible D 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers D Flow-Through Architecture Optimizes PCB Layout D Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise D EPIC ™ (Enhanced-Performance Implanted CMOS) 1-µm Process D 500-mA Typical Latch.

SN54ACT16240 Datasheet (813.41 KB)

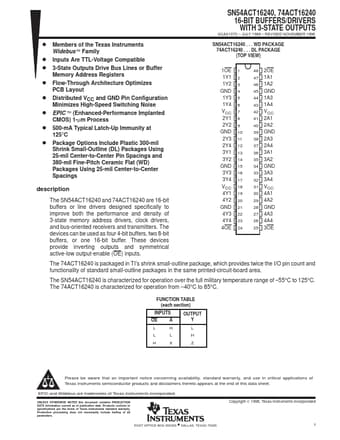

Preview of SN54ACT16240 PDF

Datasheet Details

Part number:

SN54ACT16240

Manufacturer:

Texas Instruments ↗

File Size:

813.41 KB

Description:

16-bit buffers/drivers.
