SN54ACT16373 Datasheet - Texas Instruments

SN54ACT16373 16-BIT D-TYPE TRANSPARENT LATCHES

The SN54ACT16373 and 74ACT16373 are 16-bit D-type transparent latches with 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working regist.

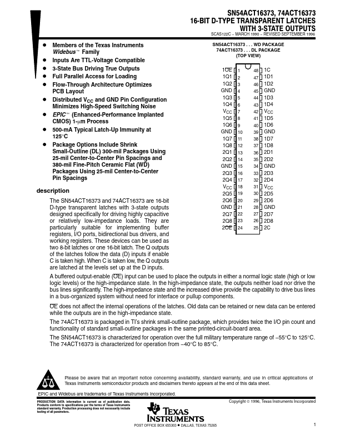

SN54ACT16373, 74ACT16373 16-BIT D-TYPE TRANSPARENT LATCHES WITH 3-STATE OUTPUTS SCAS122C MARCH 1990 REVISED SEPTEMBER 1996 D Members of the Texas Instruments Widebust Family D Inputs Are TTL-Voltage Compatible D 3-State Bus Driving True Outputs D Full Parallel Access for Loading D Flow-Through Architecture Optimizes PCB Layout D Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise D EPICt (Enhanced-Performance Implanted CMOS) 1-mm Process D 500-mA T.

SN54ACT16373-etcTI.pdf

Preview of SN54ACT16373 PDF
SN54ACT16373 Datasheet Preview Page 2 SN54ACT16373 Datasheet Preview Page 3

Datasheet Details

Part number:

SN54ACT16373

Manufacturer:

Texas Instruments ↗

File Size:

824.53 KB

Description:

16-bit d-type transparent latches.
