SN54ACT16374 Datasheet - Texas Instruments

SN54ACT16374 16-BIT D-TYPE EDGE-TRIGGERED FLIP-FLOPS

The SN54ACT16374 and 74ACT16374 are 16-bit edge-triggered D-type flip-flops with 3-state outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working .
SN54ACT16374, 74ACT16374 16-BIT D-TYPE EDGE-TRIGGERED FLIP-FLOPS WITH 3-STATE OUTPUTS SCAS124B MARCH 1990 REVISED APRIL 1996 D Members of the Texas Instruments Widebust Family D Inputs Are TTL-Voltage Compatible D 3-State Bus-Driving True Outputs D Flow-Through Architecture Optimizes PCB Layout D Distributed Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise D EPICt (Enhanced-Performance Implanted CMOS) 1-mm Process D 500-mA Typical Latch-Up Immunity a.

SN54ACT16374 Datasheet (826.58 KB)

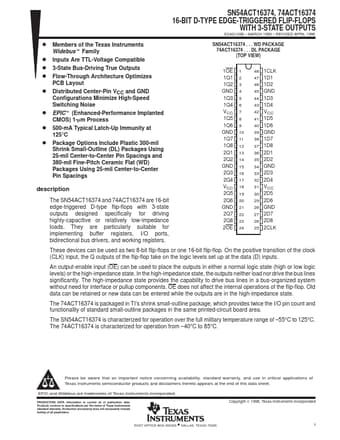

Preview of SN54ACT16374 PDF

Datasheet Details

Part number:

SN54ACT16374

Manufacturer:

Texas Instruments ↗

File Size:

826.58 KB

Description:

16-bit d-type edge-triggered flip-flops.
