SN54ACT16244 16-BIT BUFFERS/LINE DRIVERS

The SN54ACT16244 and 74ACT16244 are 16-bit buffers/line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. They can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit bu.

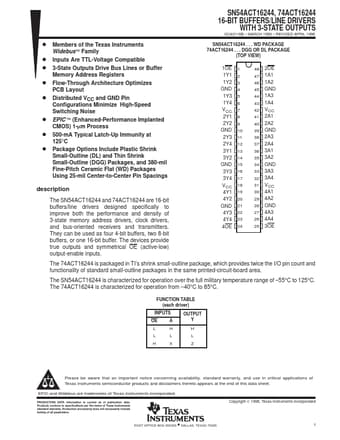

SN54ACT16244, 74ACT16244 16-BIT BUFFERS/LINE DRIVERS WITH 3-STATE OUTPUTS SCAS116B MARCH 1990 REVISED APRIL 1996 D Members of the Texas Instruments Widebus™ Family D Inputs Are TTL-Voltage Compatible D 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers D Flow-Through Architecture Optimizes PCB Layout D Distributed VCC and GND Pin Configurations Minimize High-Speed Switching Noise D EPIC ™ (Enhanced-Performance Implanted CMOS) 1-mm Process D 500-mA Typical Lat.
