SN54HC164 - 8-Bit Parallel-Out Serial Shift Registers

Texas Instruments

Datasheet Details

Part number	SN54HC164
Manufacturer	Texas Instruments ↗
File Size	1.28 MB
Description	8-Bit Parallel-Out Serial Shift Registers
Datasheet	SN54HC164-etcTI.pdf

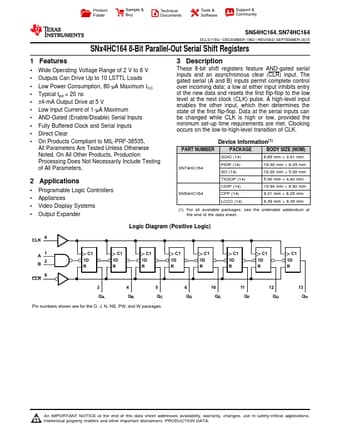

These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input.

1 Wide Operating Voltage Range of 2 V to 6 V.
Outputs Can Drive Up to 10 LSTTL Loads.
Low Power Consumption, 80-μA Maximum ICC.
Typical tpd = 20 ns.
±4-mA Output Drive at 5 V.
Low Input Current of 1-μA Maximum.
AND-Gated (Enable/Disable) Serial Inputs.
Fully Buffered Clock and Serial Inputs.
Direct Clear.
On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other.
