SN54HC164J

8-Bit Parallel-Out Serial Shift Registers

SN54HC164J Features

* 1 Wide Operating Voltage Range of 2 V to 6 V

* Outputs Can Drive Up to 10 LSTTL Loads

* Low Power Consumption, 80-μA Maximum ICC

* Typical tpd = 20 ns

* ±4-mA Output Drive at 5 V

* Low Input Current of 1-μA Maximum

* AND-Gated (Enable/Disable)

SN54HC164J Datasheet (1.28 MB)

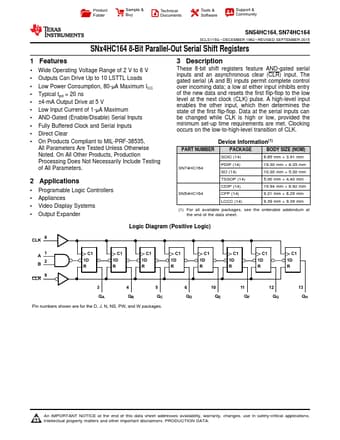

Preview of SN54HC164J PDF

Datasheet Details

Part number:

SN54HC164J

Manufacturer:

Texas Instruments ↗

File Size:

1.28 MB

Description:

8-bit parallel-out serial shift registers.
