SN54HC594 - 8-Bit Shift Register

SN54HC594 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN54HC594, SN74HC594 SCLS040G * DECEMBER 1982 The SNx4HC594 devices contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.

SN54HC594 Features

* 1 Wide Operating Voltage Range of 2 V to 6 V
* High-Current Outputs Can Drive up to 15 LSTTL Loads
* Low Power Consumption, 80-µA Maximum ICC
* Typical tpd = 15 ns
* ±6-mA Output Drive at 5 V
* Low Input Current of 1 µA Maximum
* 8-Bit Serial-

SN54HC594 Applications

* Pro Audio Mixer
* Elevators and Escalators
* Human Machine Interface (HMI): Industrial Monitor
* Entertainment Systems
* Grid Infrastructure: Grid Control

📥 Download Datasheet

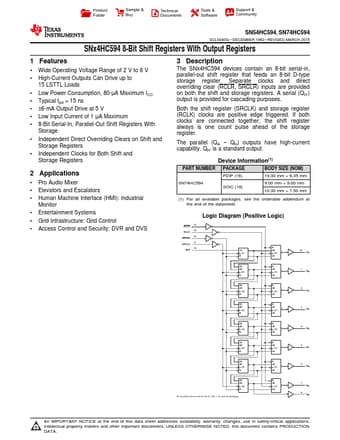

Preview of SN54HC594 PDF
datasheet Preview Page 2 datasheet Preview Page 3
