SN54HC595 - 8-Bit Shift Registers

Product Overview

Texas Instruments

📥 Download Datasheet

SN54HC595 8-Bit Shift Registers by Texas Instruments - Datasheet Preview — Datasheet preview – SN54HC595

Datasheet Details

Part number	SN54HC595
Manufacturer	Texas Instruments
File Size	2.41 MB
Description	8-Bit Shift Registers
Datasheet	SN54HC595 Datasheet

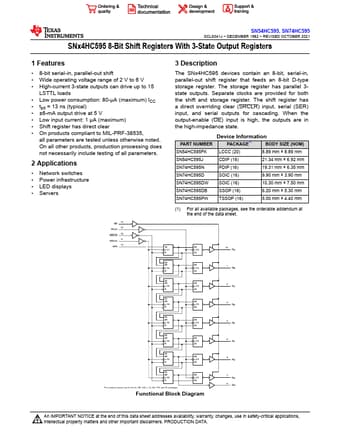

Additional preview pages of the SN54HC595 datasheet.

Product details

Description

The SNx4HC595 devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.

Features

8-bit serial-in, parallel-out shift.
Wide operating voltage range of 2 V to 6 V.
High-current 3-state outputs can drive up to 15 LSTTL loads.
Low power consumption: 80-μA (maximum) ICC.
tpd = 13 ns (typical).
±6-mA output drive at 5 V.
Low input current: 1 μA (maximum).
Shift register has direct clear.
On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, p.
