SN54LVT16501

3.3-V ABT 18-BIT UNIVERSAL BUS TRANSCEIVERS

Texas Instruments

SN54LVT16501 General Description

The ’LVT16501 are 18-bit universal bus transceivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. Data flow in each direction is controlled by output-enable (OEAB and OEBA), latch-enable (LEAB and LEBA), and clock (CL.

SN54LVT16501 Datasheet (1.05 MB)

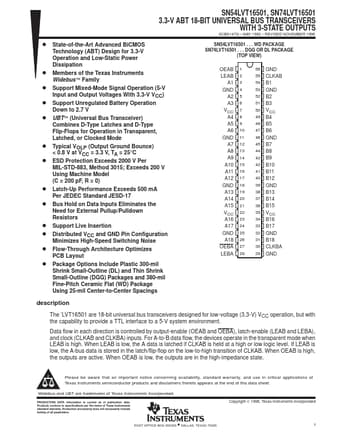

SN54LVT16501 Datasheet Preview — Preview of SN54LVT16501 PDF

Datasheet Details

Part number:

SN54LVT16501

Manufacturer:

Texas Instruments ↗

File Size:

1.05 MB

Description:

3.3-v abt 18-bit universal bus transceivers.
SN54LVT16501, SN74LVT16501 3.3-V ABT 18-BIT UNIVERSAL BUS TRANSCEIVERS WITH 3-STATE OUTPUTS SCBS147G

* MAY 1992

* REVISED NOVEMBER 199.
