SN54LVT162245A - 3.3-V ABT 16-BIT BUS TRANSCEIVERS

Texas Instruments

📥 Download Datasheet

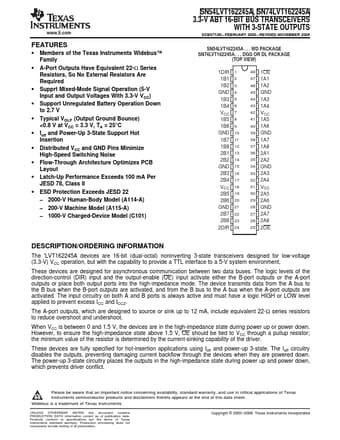

SN54LVT162245A Datasheet Preview — Preview of SN54LVT162245A PDF

Datasheet Details

Part number	SN54LVT162245A
Manufacturer	Texas Instruments
File Size	0.99 MB
Description	3.3-V ABT 16-BIT BUS TRANSCEIVERS
Datasheet	SN54LVT162245A-etcTI.pdf

SN54LVT162245A Product details

Description

ORDERING INFORMATION The 'LVT162245A devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.These devices are designed for asynchronous communication between two data buses.The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-im

Features

Members of the Texas Instruments Widebus™ Family.
A-Port Outputs Have Equivalent 22-Ω Series Resistors, So No External Resistors Are Required.
Supprt Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC).
Support Unregulated Battery Operation Down to 2.7 V.
Typical VOLP (Output Ground Bounce).
