SN54LVT16245B - 3.3-V ABT 16-BIT BUS TRANSCEIVERS

Texas Instruments

📥 Download Datasheet

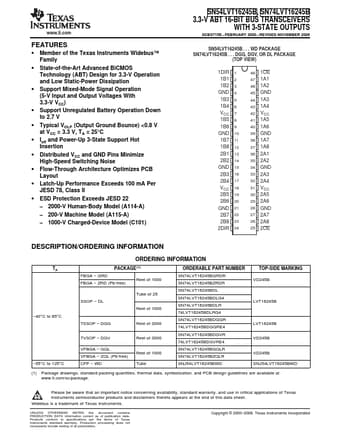

SN54LVT16245B Datasheet Preview — Preview of SN54LVT16245B PDF

Datasheet Details

Part number	SN54LVT16245B
Manufacturer	Texas Instruments
File Size	525.80 KB
Description	3.3-V ABT 16-BIT BUS TRANSCEIVERS
Datasheet	SN54LVT16245B-etcTI.pdf

SN54LVT16245B Product details

Description

ORDERING INFORMATION ORDERING INFORMATION TA 40°C to 85°C 55°C to 125°C PACKAGE (1) FBGA GRD FBGA ZRD (Pb-free) Reel of 1000 SSOP DL Tube of 25 Reel of 1000 TSSOP DGG Reel of 2000 TVSOP DGV Reel of 2000 VFBGA GQL VFBGA ZQL (Pb-free) CFP WD Reel of 1000 Tube ORDERABLE PART NUMBER SN74LVT16245BGRDR SN74LVT16245BZRDR SN74LVT16245BDL SN74LVT16245BDLG4 SN74LVT16245BDLR 74LVT16245BDLRG4 SN74

Features

Member of the Texas Instruments Widebus™ Family.
State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low Static-Power Dissipation.
Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC).
Support Unregulated Battery Operation Down to 2.7 V.
Typical VOLP (Output Ground Bounce).
