SN54LVT162244A - 3.3-V ABT 16-BIT BUFFERS/DRIVERS

Texas Instruments

📥 Download Datasheet

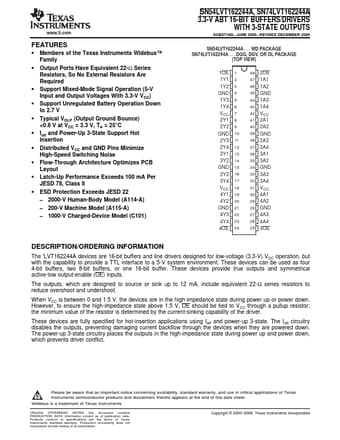

SN54LVT162244A Datasheet Preview — Preview of SN54LVT162244A PDF

Datasheet Details

Part number	SN54LVT162244A
Manufacturer	Texas Instruments
File Size	516.65 KB
Description	3.3-V ABT 16-BIT BUFFERS/DRIVERS
Datasheet	SN54LVT162244A-etcTI.pdf

SN54LVT162244A Product details

Description

ORDERING INFORMATION The 'LVT162244A devices are 16-bit buffers and line drivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.These devices provide true outputs and symmetrical active-low output-enable (OE) inputs.The outputs, which are designed to source or sink up to 12 mA, include equivalent 22-Ω series resistors to reduc

Features

Members of the Texas Instruments Widebus™ Family.
Output Ports Have Equivalent 22-Ω Series Resistors, So No External Resistors Are Required.
Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC).
Support Unregulated Battery Operation Down to 2.7 V.
Typical VOLP (Output Ground Bounce).
