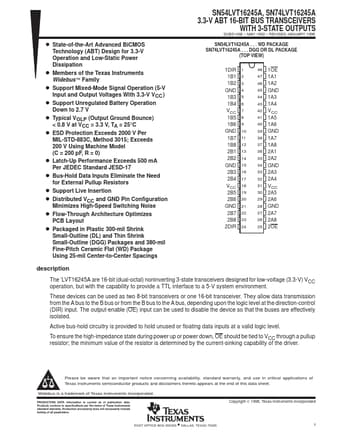

SN54LVT16245A 3.3-V ABT 16-BIT BUS TRANSCEIVERS

The ’LVT16245A are 16-bit (dual-octal) noninverting 3-state transceivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data tran.

D State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low-Static Power Dissipation D Members of the Texas Instruments Widebus ™ Family D Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC ) D Support Unregulated Battery Operation Down to 2.7 V D Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C D ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0) D Latch.

SN54LVT16245A Datasheet (271.49 KB)
