SN54LVTH182502A 3.3-V ABT SCAN TEST DEVICES

The ’LVTH18502A and ’LVTH182502A scan test devices with 18-bit universal bus transceivers are members of the Texas Instruments SCOPE™ testability integrated-circuit family. This family of devices supports IEEE Standard 1149.1-1990 boundary scan to facilitate testing of complex circuit-board assembli.

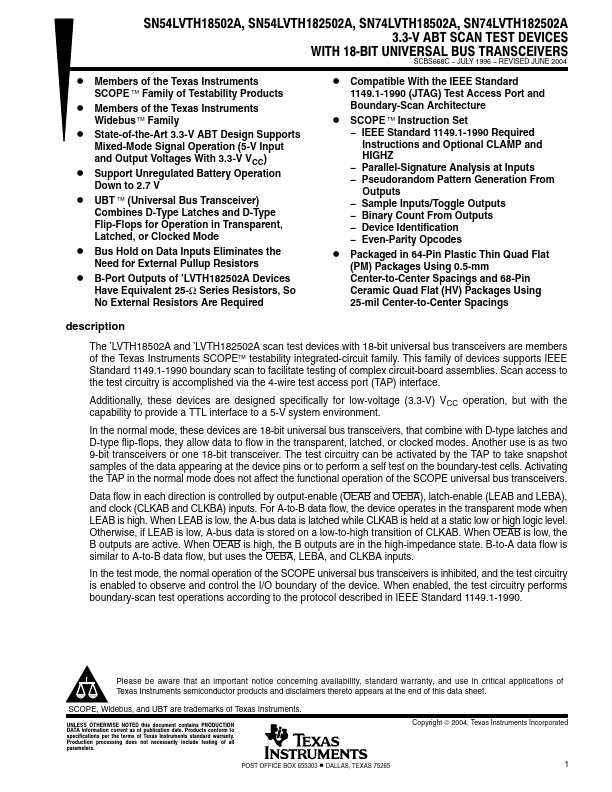

SN54LVTH18502A, SN54LVTH182502A, SN74LVTH18502A, SN74LVTH182502A 3.3-V ABT SCAN TEST DEVICES WITH 18-BIT UNIVERSAL BUS TRANSCEIVERS SCBS668C JULY 1996 REVISED JUNE 2004 D Members of the Texas Instruments SCOPE ™ Family of Testability Products D Members of the Texas Instruments Widebus ™ Family D State-of-the-Art 3.3-V ABT Design Supports Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC) D Support Unregulated Battery Operation Down to 2.7 V D UBT ™ (U.

SN54LVTH18502A-etcTI.pdf

This datasheet PDF includes multiple part numbers: SN54LVTH182502A, SN54LVTH18502A. Please refer to the document for exact specifications by model.
SN54LVTH182502A Datasheet Preview Page 2 SN54LVTH182502A Datasheet Preview Page 3

Datasheet Details

Part number:

SN54LVTH182502A, SN54LVTH18502A

Manufacturer:

Texas Instruments ↗

File Size:

829.79 KB

Description:

3.3-v abt scan test devices.

Note:

This datasheet PDF includes multiple part numbers: SN54LVTH182502A, SN54LVTH18502A.
Please refer to the document for exact specifications by model.
