SN65512C

Vacuum Fluorescent Display Drivers

SN65512C General Description

The SN65512C and SN75512C are monolithic BIDFET† integrated circuits designed to drive a dot matrix or segmented vacuum fluorescent display. All device inputs are diode-clamped pnp inputs and assume a high logic level when open circuited. The nominal input threshold is 1.5 V. Outputs are totem-pole .

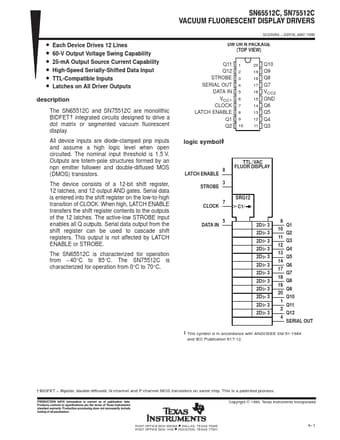

SN65512C Datasheet (85.72 KB)

Preview of SN65512C PDF

Datasheet Details

Part number:

SN65512C

Manufacturer:

Texas Instruments ↗

File Size:

85.72 KB

Description:

Vacuum fluorescent display drivers.
ą Each Device Drives 12 Lines 60-V Output Voltage Swing Capability 25-mA Output Source Current Capability High.
