SN65518

Vacuum Fluorescent Display Drivers

SN65518 General Description

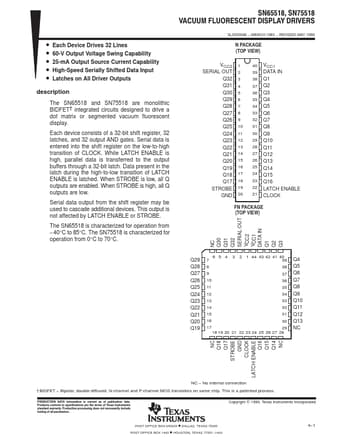

The SN65518 and SN75518 are monolithic BIDFET† integrated circuits designed to drive a dot matrix or segmented vacuum fluorescent display. Each device consists of a 32-bit shift register, 32 latches, and 32 output AND gates. Serial data is entered into the shift register on the low-to-high transitio.

SN65518 Datasheet (130.58 KB)

Preview of SN65518 PDF

Datasheet Details

Part number:

SN65518

Manufacturer:

Texas Instruments ↗

File Size:

130.58 KB

Description:

Vacuum fluorescent display drivers.
ą Each Device Drives 32 Lines 60-V Output Voltage Swing Capability 25-mA Output Source Current Capability High.
