SN74ABT8996 MULTIDROP-ADDRESSABLE IEEE STD 1149.1 TAP TRANSCEIVERS

The ’ABT8996 10-bit addressable scan ports (ASP) are members of the Texas Instruments (TI™) SCOPE™ testability integrated-circuit family. This family of devices supports IEEE Standard 1149.1-1990 boundary scan to facilitate testing of complex circuit assemblies. Unlike most SCOPE™ devices, the ASP i.

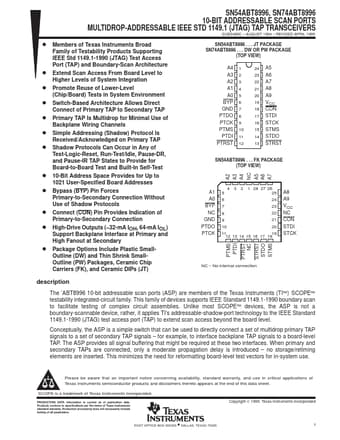

SN54ABT8996, SN74ABT8996 10-BIT ADDRESSABLE SCAN PORTS MULTIDROP-ADDRESSABLE IEEE STD 1149.1 (JTAG) TAP TRANSCEIVERS SCBS489C AUGUST 1994 REVISED APRIL 1999 D Members of Texas Instruments Broad Family of Testability Products Supporting IEEE Std 1149.1-1990 (JTAG) Test Access Port (TAP) and Boundary-Scan Architecture D Extend Scan Access From Board Level to Higher Levels of System Integration D Promote Reuse of Lower-Level (Chip/Board) Tests in System Environment D Switch-Bas.
