SN74LVT16240 - 3.3-V ABT 16-BIT BUFFERS/DRIVERS

Texas Instruments

📥 Download Datasheet

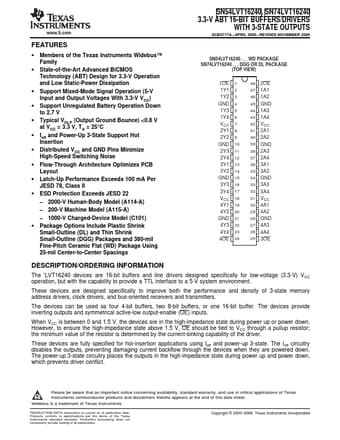

SN74LVT16240 Datasheet Preview — Preview of SN74LVT16240 PDF

Datasheet Details

Part number	SN74LVT16240
Manufacturer	Texas Instruments
File Size	0.97 MB
Description	3.3-V ABT 16-BIT BUFFERS/DRIVERS
Datasheet	SN74LVT16240-etcTI.pdf

SN74LVT16240 Product details

Description

ORDERING INFORMATION The 'LVT16240 devices are 16-bit buffers and line drivers designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.These devices are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.The devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.The devices p

Features

Members of the Texas Instruments Widebus™ Family.
State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low Static-Power Dissipation.
Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC).
Support Unregulated Battery Operation Down to 2.7 V.
Typical VOLP (Output Ground Bounce).
