TAS2560 - 5.6-W Class-D Mono Audio Amplifier

Name: TAS2560
SKU: TAS2560-1497202

Texas Instruments

📥 Download Datasheet

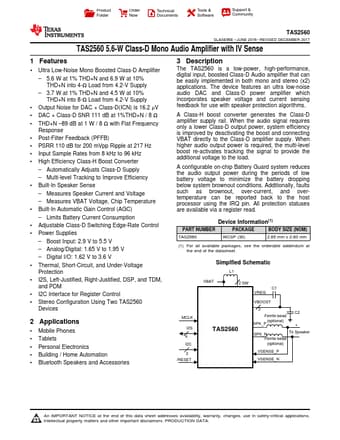

TAS2560 Datasheet Preview — Preview of TAS2560 PDF

Datasheet Details

Part number	TAS2560
Manufacturer	Texas Instruments
File Size	1.71 MB
Description	5.6-W Class-D Mono Audio Amplifier
Datasheet	TAS2560-etcTI.pdf

TAS2560 Product details

Description

The TAS2560 is a low-power, high-performance, digital input, boosted Class-D Audio amplifier that can be easily implemented in both mono and stereo (x2) applications.

Features

1 Ultra Low-Noise Mono Boosted Class-D Amplifier.
5.6 W at 1% THD+N and 6.9 W at 10% THD+N into 4-Ω Load from 4.2-V Supply.
3.7 W at 1% THD+N and 4.5 W at 10% THD+N into 8-Ω Load from 4.2-V Supply.
Output Noise for DAC + Class-D(ICN) is 16.2 μV.
DAC + Class-D SNR 111 dB at 1%THD+N / 8 Ω.
THD+N.
89 dB at 1 W / 8 Ω with Flat Frequency Response.
Post-Filter Feedback (PFFB).
PSRR 110 dB for 200 mVpp Ripple at 217 Hz.
